2200LBS Electric Chain Hoist with 3m Wired Remote Control, 110V Overhead Crane Garage, 1500W Lifting Power System w/Emergency Stop Switch, 13 Feet Max. Pulling Height

SpecificationsHousing Material: Aluminum AlloyChain Material: 20Mn2Hook Material: Manganese SteelRated Voltage: 110VRated Power: 1500WType: Double ChainsMotor Protection Grade: IP55Insulation Class: FChain Diameter: 6.3mm/0.25inchMotor Type: Pure Copper MotorPlug Type: American Standard Maximum Load Capacity: 1T/2200lbsLifting Speed: 4m/min (13ft/min) Lifting Height: 4m/13ftHandle Switch Wire Length: 3m/10ftGross Weight: 28kg/61lbsPackage Size: 51*28.5*39cm/20.9*11.22*15.35inchMachine Body Size (L*H): 45*15cm/17.72*5.91inchPackage Included1* Electric Chain Hoist1* Lifting Strap1* Chain Bag1* English Manual1* English Inspection CertificateNotes1. If the specified object is too large or the object cannot be hung directly on the hook, you will need to tie a longer webbing around the object and then hook the webbing with the hook to lift the object.2. Please ensure that all persons in the immediate area are informed and warned of the need for safety before lifting and moving heavy objects. 3. Please do not leave lifted heavy objects unsupervised for long periods as this may cause injury.4. The lifting weight shall not exceed the maximum load capacity of the product (Single chain weighing up to 1100 lbs, double chain weighing up to 2200 lbs).5. Please do not use the chain when it is bent or twisted. 6. Please do not throw the product to avoid damage.7. For the uniformly distributed work cycle, the maximum operation time of the hoist per hour is 25%, and it can handle up to 150 starts per hour. When used for infrequent working hours, it can run for 30 minutes from the cold start, with a maximum of 200 starts per hour.8. Before using the machine, please read carefully all the safety instructions in the product manual.

• 【High Lifting Efficiency】: Equipped with a powerful solid copper motor (1500W), it can lift heavy loads up to 13 feet high in less than a minute, increasing work efficiency and saving labor costs.
• 【Thoughtful Design】: When the anti-overhead limiter touches the hook, the machine will automatically stop lifting to prevent damage to the garage hoist due to over lifting. Meanwhile, the hook with safety latch can rotate 360° to lift objects in all directions, allowing the machine to be stably fixed at a high place, or attached to most carts or beam clamps, while improving safety.

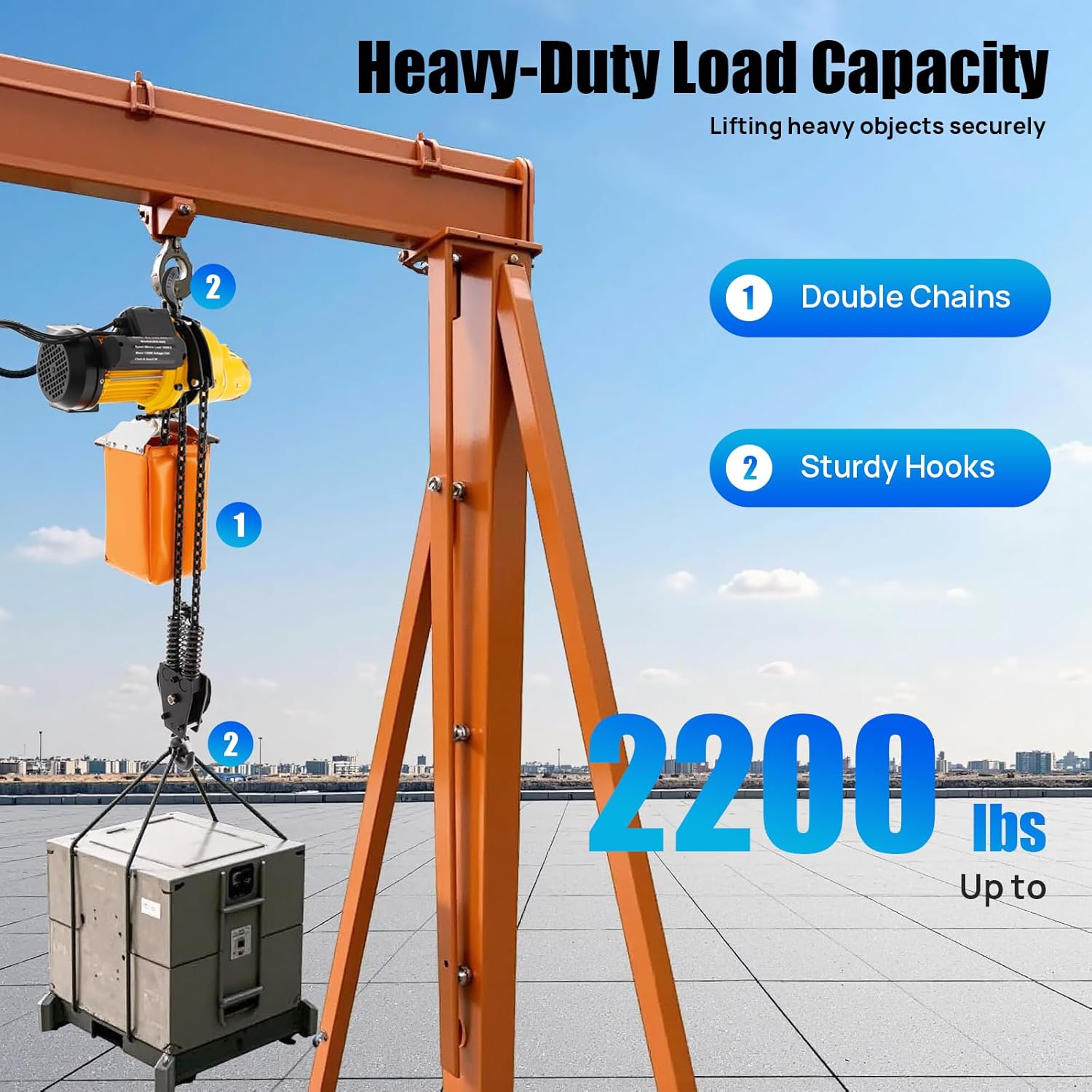

• 【Stable Performance】: High-speed bearings ensure that the motor's bearing swivel clearance remains constant over long periods of use. Its axially stable rotor and high motor force ensure good working performance. Sturdy double chains and hooks ensure a strong load capacity of 2200 pounds, enabling the CHAIN HOIST to lift heavy loads. Meanwhile, the pure copper motor has good heat dissipation and strong stability, which can provide strong power for lifting and low noise, bringing you a more comfortable working environment.
• 【High Safety】: Highly insulated motor (class F) prevents thermal damage and built-in electronic thermal protector shuts down the motor in case of high motor temperature or excessive running time until the motor is completely cooled down. The limit switches disconnect immediately after a power failure. In addition, reverse phase sequence protection and a double brake system increase safety.
• 【Scope of Application】: electric hoist is suitable for factories, docks, warehouses, logistics, construction sites, automobile manufacturers, railroads, buildings, garages, ceilings, attics, barns, lofts, etc. It is used to lift regular or irregular shaped objects and can be used for various lifting equipment, such as single column, wall columns, cranes and so on.
